Quickly extendable telescopic mast for many possible uses



Model: SBM-600

teleskopmast

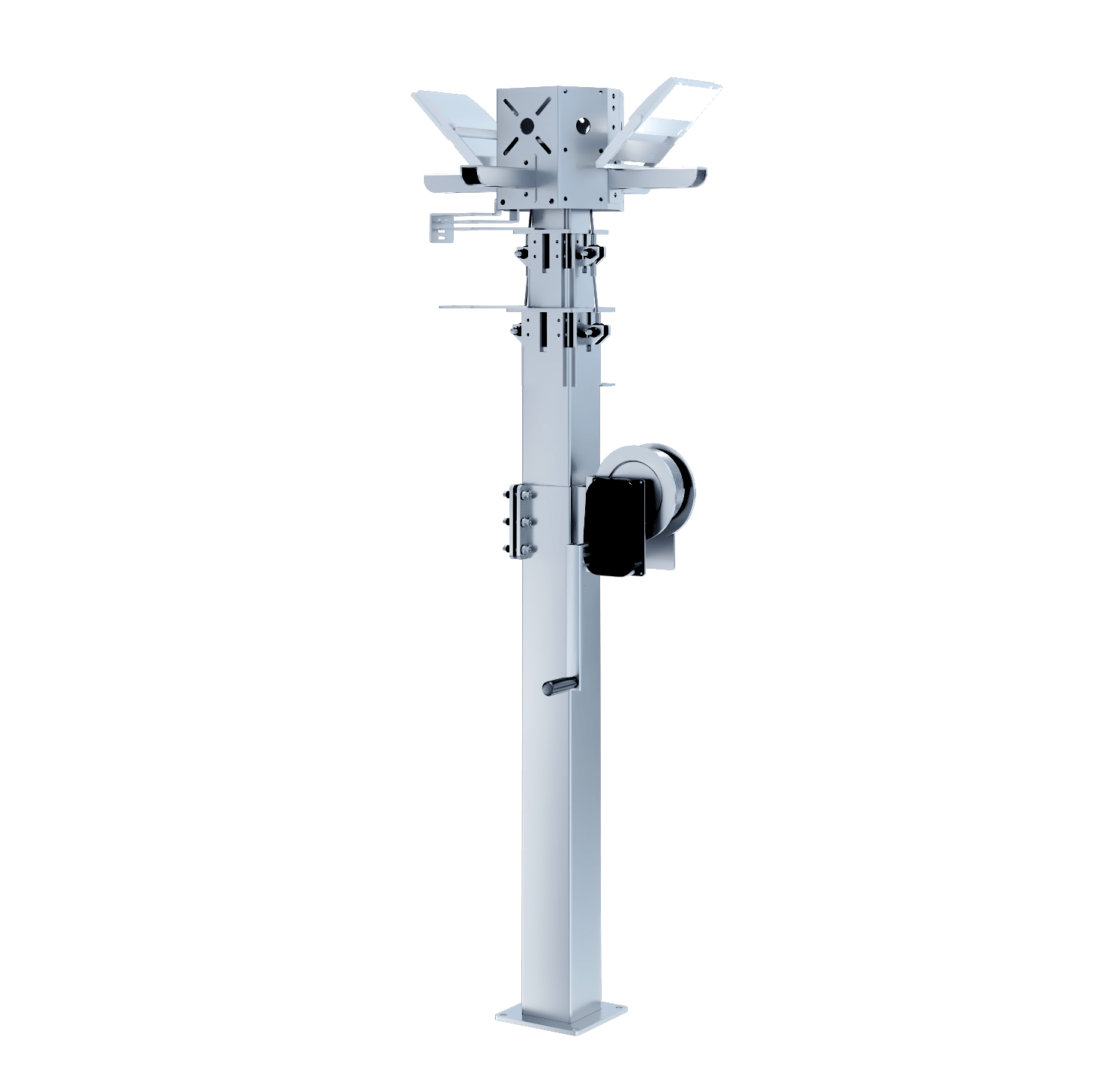

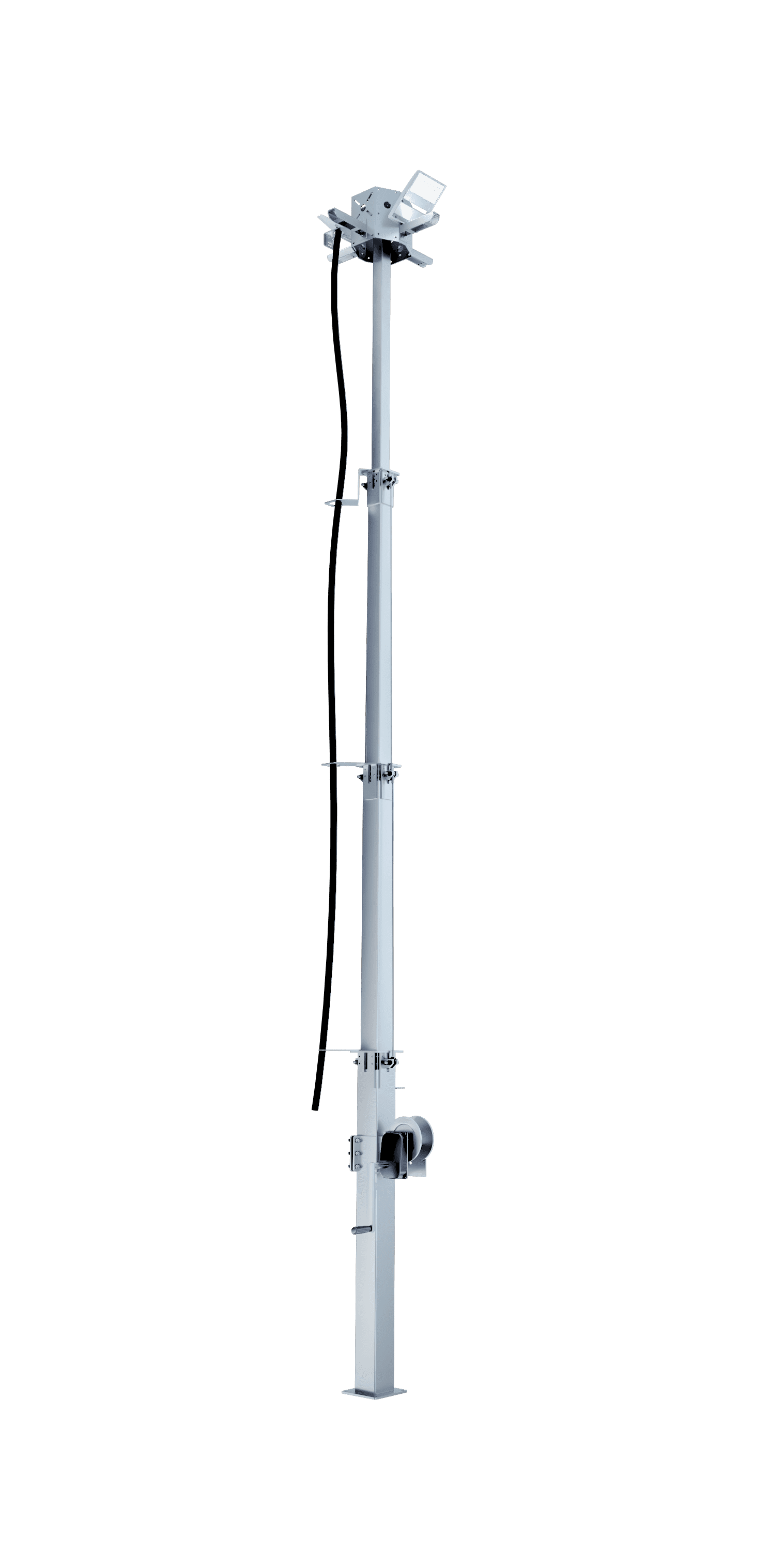

Unique design, many possible uses

Our specially developed SBM - 600 telescopic mast is a quickly deployable mobile all-rounder solution for many possible uses. The SBM - 600 telescopic mast, with self-locking cable winch and hand crank drive, is particularly suitable for stationary applications (e.g. for recording CCTV cameras, lighting, measuring devices).

The drive is carried out using a self-locking cable winch and threaded spindle when extending and retracting. A secure hold at any intermediate height is guaranteed by the hand crank winch. The maximum height was limited by stops.

Optionally, the mast can be supplied with a mounting attachment for your technical devices.

  • Teleskopmast SBM600

  • Teleskopmast SBM600

  • Teleskopmast SBM600

  • Teleskopmast SBM600

-100% hot-dip galvanized steel construction

-100% hot-dip galvanized telescopic mast

- Mobile unit easy to transport

- Crank mast up to 6 meters high

- Stable telescopic mast for CCTV camera, light or other devices

- Mast tip prepared for devices

- Manual winch

- CE and ISO 9001 certified

Dimensions: 120x100x80x60 cm

- Manual CE approved hand winch 1200 LBS

- Telescopic mast hot-dip galvanized

- Maximum load capacity

- Steel structure, 100% hot-dip galvanized

- Maximum height 5.75 meters

- Total weight 75 KG

- Equipped with cable management clamps

- Automatic stop and safety marking

- Locking pin

- Maximum load capacity 60 KG on the mast

Call us or send us an email

  • This email address is being protected from spambots. You need JavaScript enabled to view it.
  • +49 (0) 241-400 80 99

Temporary & Simple

The special features of the SBM-600 crank mast

-Very high corrosion resistance thanks to 100% hot-dip galvanized and extremely robust steel construction, which is particularly suitable for outdoor use.


-Accommodation of the cable mechanism protected in the cavity between the mast profiles


-Accommodation of the cable mechanism protected in the cavity between the mast profiles


-Low-noise operation of the lifting elements


-Heavy-duty mechanical winch


-Secure hold at any intermediate height


-The lifting elements extend evenly


-Pre-fabricated floor mounting plate
